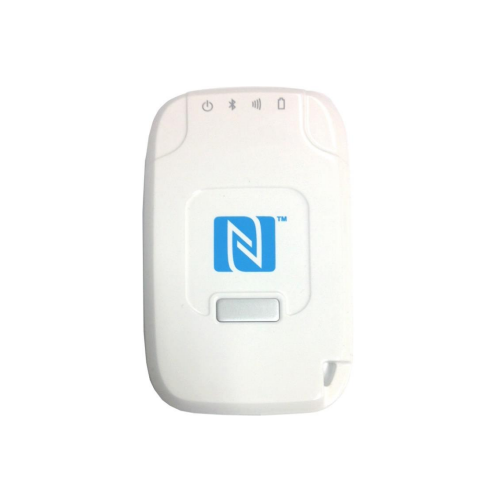

The Duali Dragon NFC Reader (Bluetooth) has the ability to read tag and card information via NFC and then send this data out to Android tablet/smartphone via Bluetooth. This reader is well-suited for applications such as visitor management, transportation, loyalty service and great use for contactless/NFC ticket management, in-store coupon/loyalty management, local payment or event/festival management.
Bluetooth Features:
- CPU: ARM 32-bit CPU
- Program/Data Memory: 128KBytes Flash/20KBytes SRAM
- Host Interface: Bluetooth v.2.1 + EDR & Micro USB (Recharge & Communication)
- Contactless Communication: ISO 14443 A/B, Mifare, DESFire, FeliCa, ISO15693, ISO 18092 4 tag type
- Contact Communication: ISO 7816 compliant (SAM X 1EA)
- Reading Distance: Maximum 5cm
- Interface: 4 Status LED (Power, Bluetooth, RF, Battery), Vibrator & Buzzer
- Battery: 580Ah (5~6hours operation/ 14hours stand-by-mode), sleep mode (awake button), re-chargeable via micro USB cable
- NFC TAG encoder (T1T/T2T/T3T/T4T)
- MIFARE series, FeliCa, DESFire
- SDK for Windows & Android

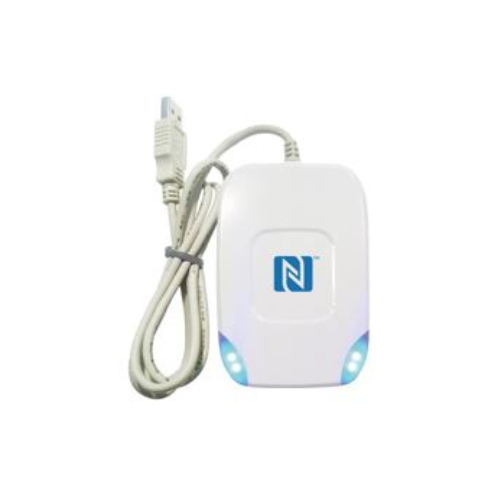

The Duali Dragon NFC Reader (USB) is a contactless cards interface device which supports ISO14443 A/B, Mifare series, Felica and NFC (ISO18092) protocol at the same type. Also, it supports Contact cards (1 X SIM type slots) which comply with ISO 7816 for secured data transmission. Especially, with its NFC manager package, the Duali Dragon enables software engineers to develop a wide array of applications based on NFC technology.
USB Features:
- Interface- USB 2.0(12Mbps)
- Contactless- ISO 14443 A /B, Mifare, DESFire, FeliCa, ISO 18092
- Communication- NFC forum tag type 1~4, NFC P2P
- PC/SC (USB) Mode (Includes USB)
- Compact and simple design for easy carry and use
- Easily upgradeable download of the latest firmware
- Special SDK (NFC Manager) for NFC developer
- Contactless speed- 106/212/424/847kbps, up to 424kbps for NFC P2P
- Certification- CE, FCC, NFC Forum certified, RoHS complaint
- Duali Dragon connectivity options include USB or Bluetooth
